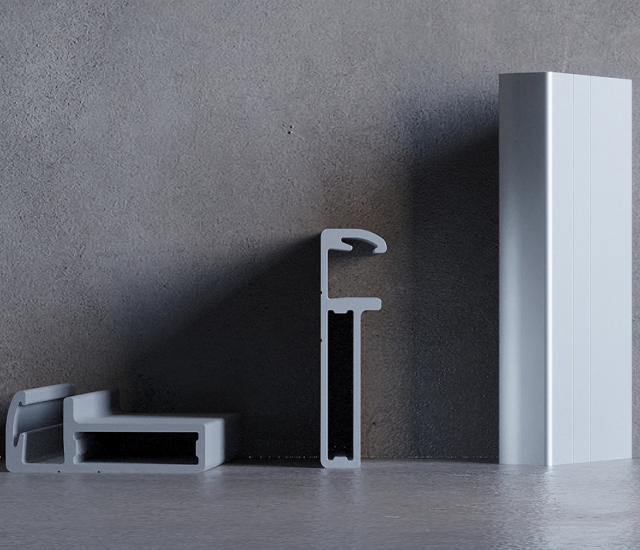

Name: TY-GY8152
Brand: Foshan Tuowei Technology Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

TY-GY8152

Spraying color can be customized according to drawings, such as silver, black, blue; frame size and wall thickness can be customized according to requirements

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

No.	Frame size (mm)	Glass size(mm)	(mm)	(mm)	Thickness(mm)	Remark
Position	*AB**	C	D	E	F
1	*2520**	4.5	3	7	0.8
2	*2520**	4.5		7	0.95
3	*2525**	5	3	6.5	0.8
4	*2515**	4.4		7	1	No angle
5	*1815**	4.4		6	0.85	No angle
6	*3025**	5	3	6.5	0.8
7	*3025**	5	3	8	0.9
8	*3025**	5	3.8	8	1
9	*3025**	5	4	11.7	1	*
10	*29.524.5**	5.1	3.8	11	1
11	*3025**	5.7	4	10	1
12	*3025**	5	3.8	9	1.2
13	*3025**	4.7	4	10	1.5
14	*3025**	4.7			1.5	*
15	*306**	5.7	6	10	4
16	*3030**	5	7.2	8.7	1.2
17	*3030**	5	7.2	8.7	1.4
18	*3015**	5	7.2	8.7	1.2
19	*3015**	5	7.2	8.7	1.4
20	*3030**	5.1	7.24	11	1.4
21	*3525**	5	3.5	6.5	0.8
22	*353.5**	5	3.5	8	1.05
23	*3530**	5.1	3.8	8	1.2
24	*3530**	5.1		8	1
25	*3530**	5	3.8	8	0.8
26	*3535**	5	4	10.03	1.23
27	*3535**		4	10	1.43
28	*3535**	5	8	10	1.37
29	*3535**	5	8	9.8	1.2
30	*3533**	5.3	11	11	1.5
31	*3535**	5	4	9.8	1.2
32	*3535**	5	3.8	9	1.25
33	*3535**	5.2	4	11	1.3
34	*3535**	5.2	4	10	1.5
35	*3535**	5.8	4	10	1.5
36	*3535**	5	4	10	1
37	*3535**	5	3.8	8	0.9
38	*3535**	5.2	4	10	1.3
39	*4025**	5.1	3.8	8	0.9
40	*4025**	5.1	3.8	8	1.2
41	*4030**	5	3.5	8.4	1.2
42	*4035**	5	4	10	1.45
43	*4035**	5	4	10	1.25
44	*4035**	5.2	4	10	1.4
45	*4035**	5	8	10	1.2
46	*5035**	5.2	4	10	1.4

TY-GY8152

SPECIFICATION

Download
